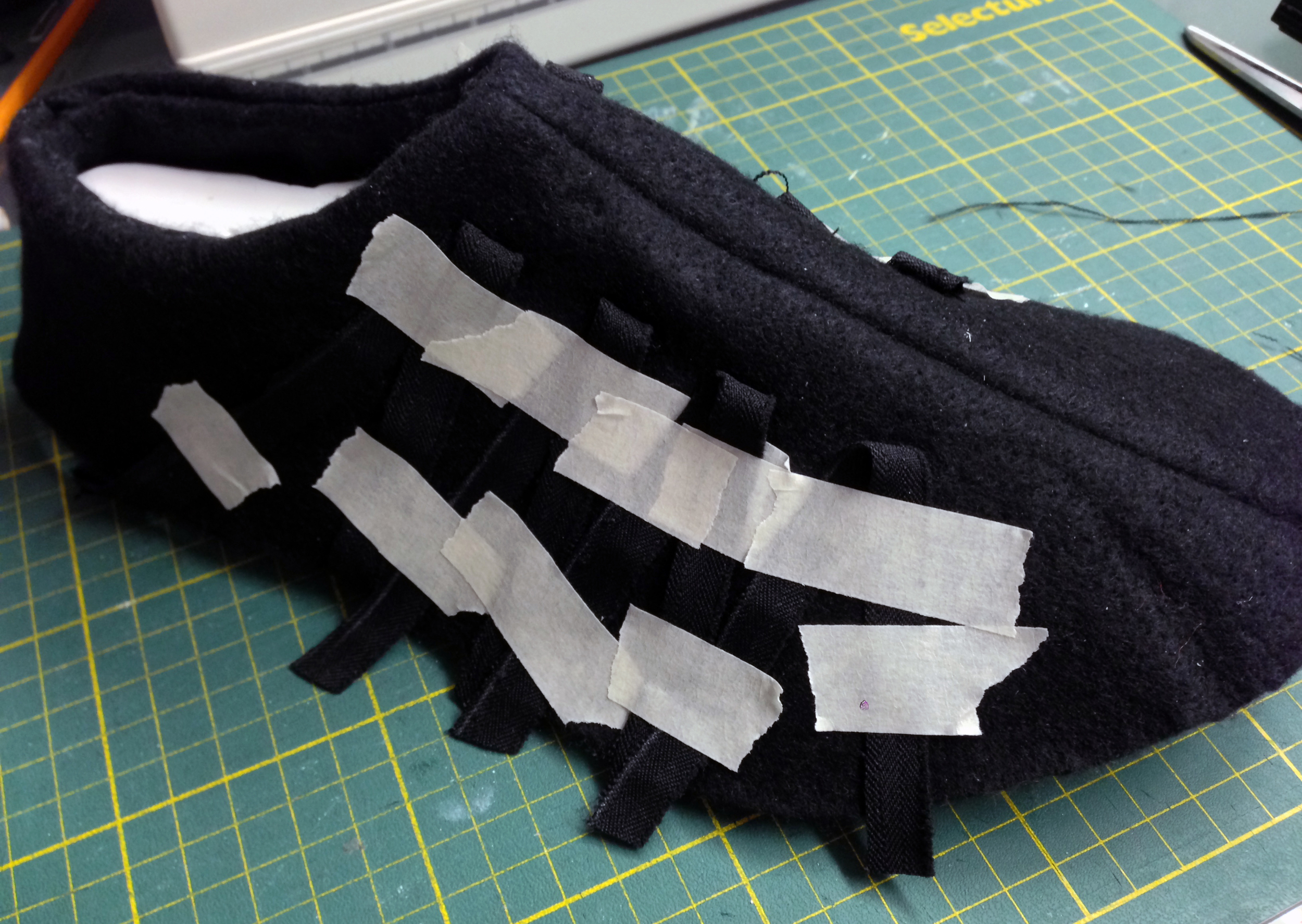

Very first mockup to visualize the straps on the removable liner.
Using plaster to cast the last.

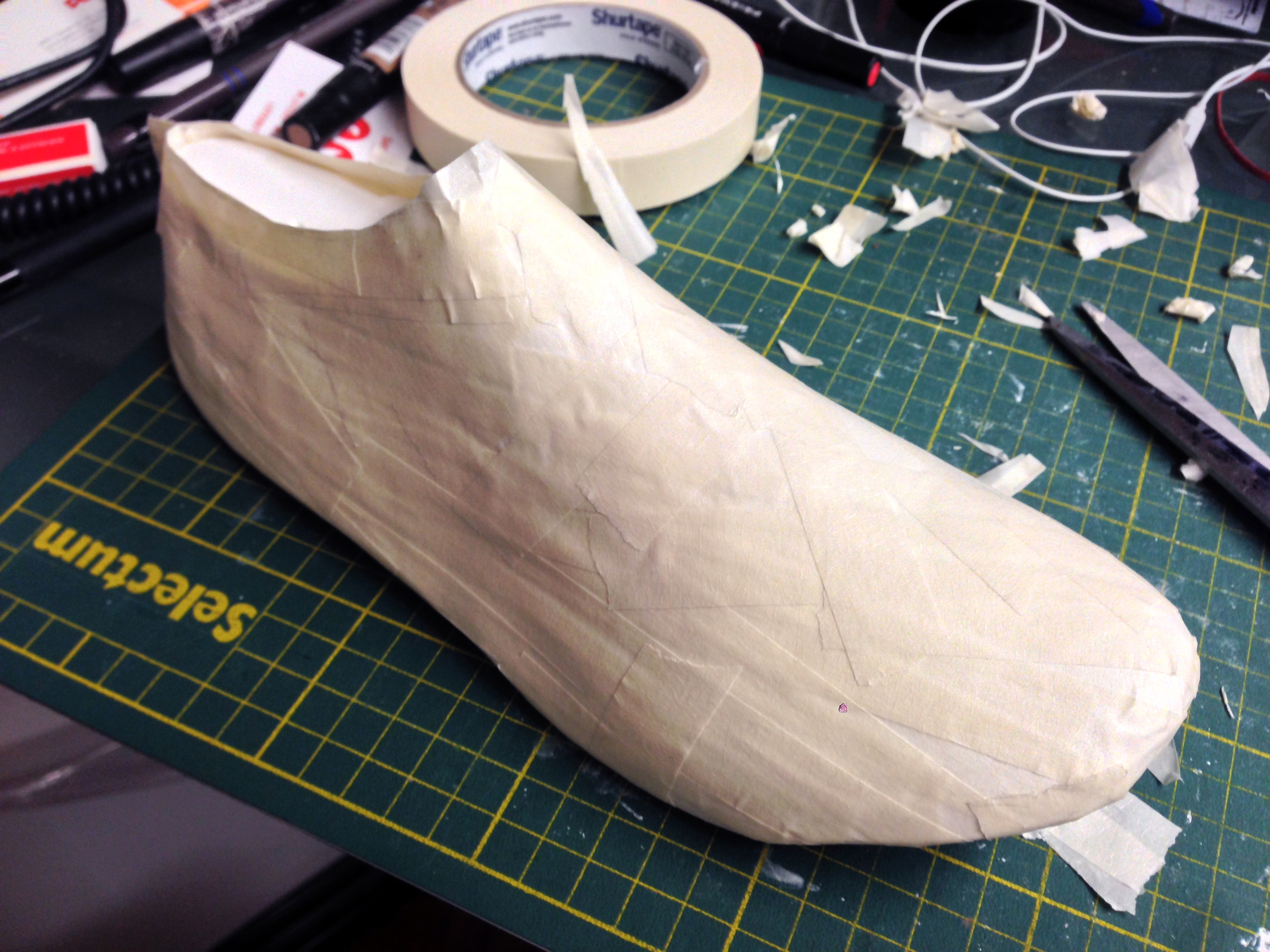

Using masking tape to get the pattern.
Sample #1 using felt.
Sample #2 using mesh and grosgrain ribbon.
Final sample using a foam/mesh sandwich.
Using masking tape once again to get the boot pattern
Putting together the boot upper. Used an iron-on laminate to simulate a synthetic overlay.
Sewing in the zipper and zipper flap.
With both uppers done, the process shifted to the tooling. CAD was done in Rhino by Alex McKellar and printed/painted by Nova.
Finished model of the removable liner.
The initials of the people that helped out with this project. This is my thank-you note to them.
A view showing how the liner will fit inside the boot.
Finished model of the boot.
3M reflective treatment for the swoosh.
